MHBHL-H轮辐荷重传感器传感器采用轮辐式结构,利用剪切应力原理,具有外形低、抗偏载、精度高、强度好等特点。
额定载荷 Rated load | 100kg~300t |
灵敏度 Output sensitivity | 2.0±0.05 mV/V |
非线性 Non-linearity | ±0.05~±0.1 %F•S |
滞后误差 Lag error | ±0.05 %F•S |
重复性误差 Repeatability | ±0.05 %F•S |
蠕变 Creep | ±0.05 %F•S |
零点温度系数 Zero temperature coefficient | ±0.05 %F•S/10℃ |
灵敏度温度系数 Sensitivity temperature coefficient | ±0.05 %F•S/10℃ |
输入电阻 Input resistance | 750±30Ω或 1.45K±50Ω |
输出电阻 Input resistance | 700±5Ω或 1.4K±5Ω |
工作温度范围 | -20℃~+70℃ |
安全过载 Safe overload | 150 %F•S |
绝缘电阻 Insulation resistance | ≥2000MΩ |
激励电压 Incentive voltage | 5V~12V |
防护等级 Protection class | IP65、IP66 |
材质 Material | 合金钢、不锈钢 |
线缆 Cable. | Φ5×3M |

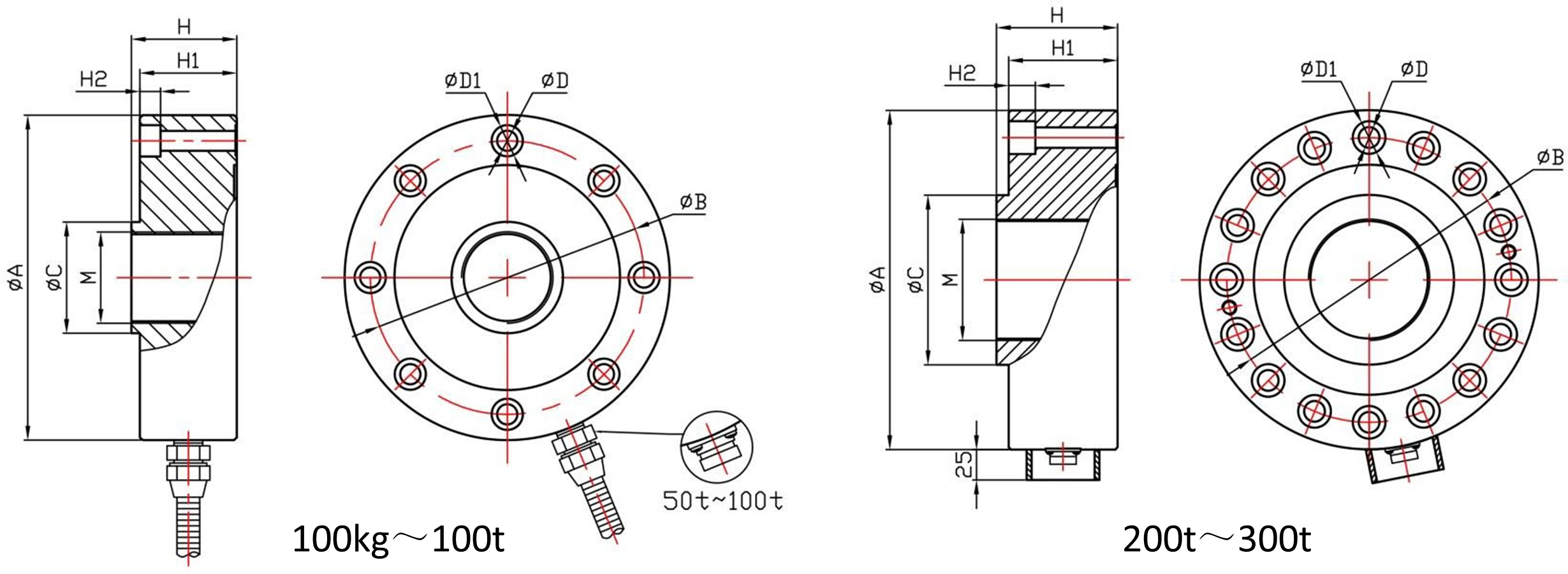

量程 | ØA | ØB | ØC | M | H | H1 | H2 | ØD | ØD1 |
100kg~2t | Ø75 | Ø60 | Ø18 | M12X1.75 | 22 | 20 | 6 | 8-Ø6 | 8-Ø10 |
3t~5t | Ø88 | Ø74 | Ø25 | M16X1.5 | 34 | 31 | 7.2 | 8-Ø7 | 8-Ø11 |
10t~20t | Ø114 | Ø96 | Ø39 | M32X1.5 | 37 | 34 | 10.5 | 8-Ø9 | 8-Ø14 |
30t | Ø125 | Ø105 | Ø46 | M32X1.5 | 45 | 42 | 10.5 | 8-Ø9 | 8-Ø14 |
50t | Ø148 | Ø125 | Ø60 | M40X1.5 | 55 | 50 | 11 | 8-Ø11 | 8-Ø18 |
100t | Ø198 | Ø170 | Ø95 | M64X3 | 70 | 65 | 15 | 16-Ø13 | 16-Ø20 |
200t | Ø280 | Ø235 | Ø140 | M100X3 | 100 | 90 | 22 | 16-Ø17 | 16-Ø27 |
300t | Ø350 | Ø300 | Ø190 | M130X3 | 120 | 110 | 25 | 16-Ø22 | 16-Ø34 |
