MHBHM膜盒式荷重传感器采用平膜片结构,外壳与膜片一体,体积小、使用台面低,性能稳定。适用于各种测力、称重检测装置的工业自动化测控系统。
额定载荷 Rated load | 50kg~10t |
灵敏度 Output sensitivity | 2.0±0.05 mV/V |
非线性 Non-linearity | ±0.3~±0.5%F•S |
滞后误差 Lag error | ±0.3 %F•S |
重复性误差 Repeatability | ±0.3 %F•S |
蠕变 Creep | ±0.1 %F•S |
零点温度系数 Zero temperature coefficient | ±0.1 %F•S/10℃ |
灵敏度温度系数 Sensitivity temperature coefficient | ±0.1 %F•S/10℃ |
输入电阻 Input resistance | 750±30Ω |
输出电阻 Input resistance | 700±5Ω |

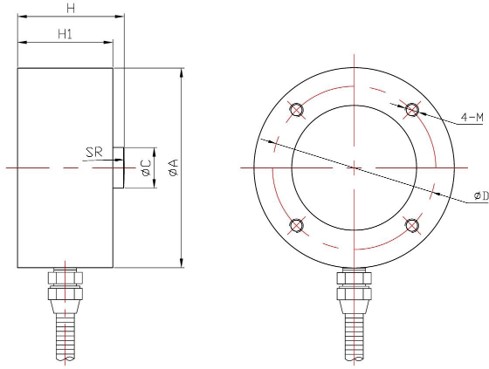

量程 | ØA | ØC | H | H1 | SR | ØD | 4-M |
50kg~5t | Ø51 | Ø10 | 25 | 20 | 50 | Ø42 | M5x8 |
6t~10t | Ø88 | Ø18 | 47 | 42 | 150 | Ø72 | M6x12 |
