MHBHQ-I桥式传感器采用双剪切结构,鱼背式承载,可自动复位。适用于钢包秤、天车秤及起重、水利、煤矿等行业的自动化测控系统。
额定载荷 Rated load | 5t~20t |
灵敏度 Output sensitivity | 1.5~2.0±0.05 mV/V |
非线性 Non-linearity | ±0.05 ~ ±0.1 %F•S |
滞后误差 Lag error | ±0.05 %F•S |
重复性误差 Repeatability | ±0.05 %F•S |
蠕变 Creep | ±0.05 %F•S |
零点温度系数 Zero temperature coefficient | ±0.05 %F•S/10℃ |
灵敏度温度系数 Sensitivity temperature coefficient | ±0.05 %F•S/10℃ |
输入电阻 Input resistance | 750±30Ω |
输出电阻 Input resistance | 700±5Ω |

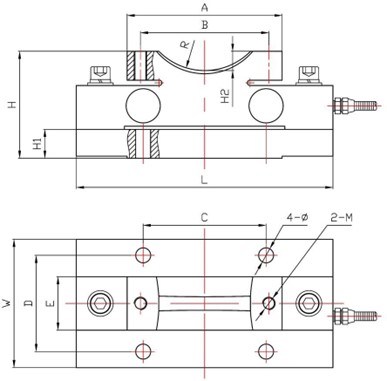

量程 | L | W | H | A | B | C | D | E | H1 | H2 | R | 4-Ø | 2-M |
5t | 240 | 120 | 100 | 145 | 120 | 115 | 90 | 50 | 27 | 18 | 60 | Ø14 | M12X1.75 |
10t~20t | 300 | 135 | 127 | 210 | 180 | 170 | 100 | 56 | 41 | 20 | 83 | Ø18 | M16X2 |
